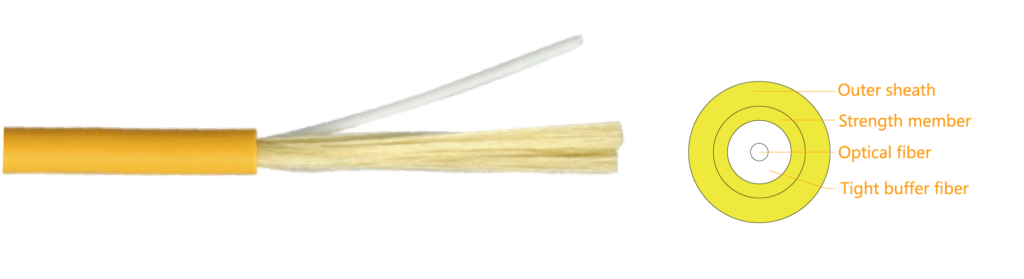

Simplex optical fiber cable(SXC) use single φ900μm or 600μm tight buffer fiber as optical unit,the tight buffer fiber wrapped with a layer of aramid yarn as strength member,and the cable is sheathed by a PVC or LSZH(Low smoke, Zero halogen,Flame-retardant)material.
| Cable Code | Cable Diameter (mm) |
Cable Weight (kg/km) | TBF Diameter (mm) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
|
|---|---|---|---|---|---|---|---|
| PVC Sheath | LSZH Sheath | ||||||
| SXC-1.6 | 1.6 ± 0.1 | 2.3 | 2.4 | 0.6 ± 0.05 | 40/80 | 100/500 | 10D / 20D |
| SXC-2.0 | 2.0 ± 0.1 | 3.9 | 4.0 | 0.9 ± 0.05 | 60/100 | 100/500 | 10D / 20D |
| SXC-3.0 | 3.0 ± 0.1 | 6.5 | 6.8 | 0.9 ± 0.05 | 80/150 | 100/500 | 10D / 20D |
| Application Scenario | Description & Compliance |
|---|---|
| Optical Patchcords & Pigtails | Perfected for assembling premium-grade optical fiber patchcords and pigtails, delivering exceptionally low insertion loss and high reliability for active hardware termination and fiber management systems. |
| Riser & Plenum Infrastructures | Specifically optimized for vertical backbone riser shafts and horizontal plenum ventilation spaces, ensuring superior fire-retardant performance and compliance with stringent indoor infrastructure safety regulations. |
| Equipment Interconnectivity | Engineered for high-density interconnectivity between precision analytical instruments, server racks, and central communication hubs, securing stable and lossless data throughput. |
| Instructions | |||
|---|---|---|---|
| Transport / Storage / Operating Temperature | -20 ~ +60°C | Construction Temperature | -5 ~ +50°C |
The optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics(FRP)are placed at the two sides,the cable is sheathed by a black or color LSZH sheath. After an aluminum tape or corrugated steel tape moisture barrier is applied,Finally,the cable is sheathed by PE material.
Mini optical fiber indoor cable use several φ250μm colored fiber as optical communication medium,the colored fiber wrapped with a layer of aramid yarn as strength member units,and the cable is sheathed by a PVC or LSZH(Low smoke,Zero halogen, Flame-retardant)material.
Breakout optical fiber cable use simplex cable(900μm tight buffer fiber,aramid yarn as strength member)as subunit. A fiber reinforced plastic(FRP)locates in the center of core as a non-metallic strength member.The subunits are stranded around the cable core.The cable is sheathed by a PVC or LSZH(Low smoke,Zero halogen,Flame-retardant)material.
