Choosing an ADSS fiber optic cable for an aerial telecom route is not only a fiber-count decision. The cable must also match the span length, sag requirements, wind and ice exposure, tower or pole geometry, installation method, and the fittings used to support it. A cable that looks suitable on a product list can still create installation risk if the mechanical design is not aligned with the route.
This guide explains how procurement teams, network contractors, and utility communication engineers can turn route information into a clearer ADSS cable request for quotation. It focuses on practical selection logic: when to use an all-dielectric self-supporting cable, how span length affects fitting selection, which construction details should be confirmed, and what information should be included before production.
Quick Answer: What Determines ADSS Cable Span Selection?
ADSS span selection is determined by the combination of cable construction, route geometry, environmental loading, and the support hardware. Start with the actual ruling span and the longest individual span, then confirm the required fiber count, sheath design, installation temperature, wind and ice conditions, maximum sag, clearance, and fitting type. Do not select a clamp from span length alone.
- Use an ADSS cable when the route needs a self-supporting, all-dielectric aerial cable without a metallic messenger.
- Separate tangent or suspension locations from tension, corner, and terminal locations.
- Confirm whether the route includes short spans, medium spans, long spans, large height differences, or line angles.
- Request cable and fitting data together so the mechanical design is treated as one system.
- Ask for a project-specific RFQ review before finalizing the cable code and accessories.
What Is ADSS Fiber Optic Cable?
ADSS means all-dielectric self-supporting. The cable contains optical fibers and non-metallic structural elements, allowing it to be installed aerially without relying on a separate metallic messenger wire. This construction is useful on telecom routes, utility corridors, and communication networks where electrical isolation, lighter installation planning, or compatibility with existing overhead infrastructure matters.
The OWIRE fiber optic cable catalogue lists ADSS cable in fiber-count ranges from 2 to 288 cores. The catalogue also distinguishes ADSS from other outdoor cable families such as loose-tube armored cables, figure-8 self-supporting cables, ASU cables, and OPGW. That distinction is important: the right aerial cable is selected from the route and mechanical requirements, not from the word “aerial” alone.
For a broader product review, compare the fiber optic cable product range with the route type, installation method, and termination plan. If the route is still being designed, the fiber optic cable procurement planning guide can help organize the technical information before an RFQ is issued.
Why Span Length Changes the Mechanical Design

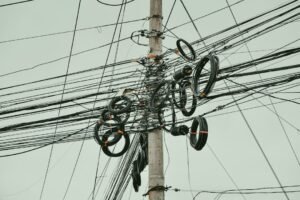

A span is the distance between two supporting structures. In a simple route this may be the distance between two poles, but real projects often include different pole spacing, elevation changes, road crossings, river crossings, corners, and terminal structures. The longest span is not always the only controlling condition. A shorter span at a sharp angle can place a different load on the fitting than a straight, longer span.
As the span increases, the designer must pay closer attention to sag, tension, clearance, wind exposure, and the cable’s interaction with the support hardware. A cable that works on a short urban span may not be the correct choice for a long rural crossing. Conversely, specifying a heavy or highly reinforced design for every short span can add cost and installation effort without improving the route.
The practical procurement rule is simple: provide the route profile and the loading assumptions to the manufacturer. A supplier can then recommend a cable construction and fitting arrangement that matches the project instead of guessing from a single nominal span value.
ADSS Span Categories and Fitting Logic
OWIRE’s catalogue describes several fitting applications by route condition. These descriptions are useful for building an initial RFQ, but the final selection should still be checked against the cable’s rated tensile strength, the actual route geometry, and the installation calculation.
| Route condition | Typical fitting direction | What the buyer should confirm |
|---|---|---|
| Short span or tangent route | Tangent or suspension support | Support angle, cable diameter, messenger-free installation, and local loading |
| Medium span | Single-layer preformed support or tension arrangement | Rated cable strength, grip length, and compatible hardware set |
| Long span | Long-span tension or suspension fitting | Ruling span, maximum tension, sag, wind and ice conditions |
| Corner or terminal structure | Tension clamp and anchoring accessories | Line angle, end termination, dead-end load, and tower or pole attachment |
| Large height difference or very long crossing | Specialized double suspension or engineered arrangement | Elevation difference, line angle, clearance, and project-specific calculation |
The catalogue notes that ADSS suspension clamps with a double-layer preformed design are generally used for spans above 200 meters. It also identifies a double suspension arrangement for situations involving a height difference and spans above 800 meters, or a line angle above 30 degrees. Treat these values as catalogue guidance for initial routing, not as a substitute for engineering approval.
Short-Span Aerial Routes
Short-span routes are common in urban access networks, industrial parks, campus extensions, and local distribution corridors. They may appear mechanically simple, but short spans can still include frequent poles, tight attachment spaces, and many changes in direction. The main selection risks are usually poor hardware fit, excessive local bending, and incomplete information about the pole attachment point.
For a short span, ask the supplier to confirm the cable outer diameter, minimum bending radius, compatible suspension or tangent clamp, and the correct dead-end arrangement for corners and endpoints. The hardware should grip the cable without creating a concentrated stress point. Installation teams should also maintain the manufacturer’s recommended handling and bending practices when the cable is lifted and placed.
Short span does not mean “any cable will work.” If a route crosses a road, passes near energized equipment, or uses a difficult attachment angle, electrical and mechanical conditions may be more important than the nominal distance between poles.
Medium- and Long-Span Routes
Medium and long spans require clearer separation between suspension points and tension points. A suspension clamp supports the cable along a relatively straight section. A tension clamp or dead-end transfers axial load to the structure. Using the wrong fitting at a corner or terminal can damage the cable, reduce installation reliability, or make future maintenance more difficult.
For longer spans, the buyer should provide at least the maximum span, the ruling span if available, the route elevation profile, the expected wind and ice conditions, the installation temperature range, and the required ground or roadway clearance. If the project crosses a valley, river, highway, or railway, identify that section separately instead of averaging it with normal spans.
Long-span design should also consider cable weight and the number of accessories required. A lower-weight construction may reduce structural loading, while a reinforced or armored design may be needed for environmental or route protection. The selection should be made from the total system requirement, not from a single preference for lighter or stronger cable.
When to Consider a Different Outdoor Cable Type
ADSS is not the only outdoor fiber cable construction. A route may require a loose-tube armored cable for duct or direct-buried installation, a figure-8 cable with an integrated messenger, an ASU cable for a specific self-supporting access route, or OPGW when optical fibers are integrated into an overhead ground wire system.
For example, the OWIRE catalogue identifies GYTA, GYTS, GYTA53, GYFTY, GYFTA, GYFTY53, and GYFTA53 families for different combinations of metallic or non-metallic strength members, armor, moisture protection, and installation applications. The catalogue also lists ASU, figure-8, and OPGW products as separate constructions. This is why a project RFQ should state whether the route is aerial, duct, direct burial, utility power-line, or building access.
If you are comparing buried or duct routes with an aerial section, review the outdoor loose tube fiber optic cable buying guide. For a power transmission route, the OPGW fiber optic cable buying guide addresses a different engineering use case and should not be treated as an ADSS substitute.
Construction Details to Confirm Before Ordering
- Fiber count: Confirm the working fibers, spare fibers, future expansion allowance, and whether the route requires a 2-288 core configuration.
- Fiber type: State the required single-mode fiber type, transmission window, and project standard. Do not assume the same fiber type is suitable for every network segment.
- Strength member: Confirm the non-metallic strength design and whether the route has special tensile or environmental requirements.
- Sheath: Confirm the outer sheath material, color, UV exposure, tracking conditions, and local fire or environmental requirements.
- Water protection: Ask how the cable core is protected against moisture and whether the route includes wet, coastal, or high-rainfall conditions.
- Diameter and weight: These affect fitting compatibility, handling, pole loading, and clearance calculations.
- Temperature: Provide installation and operating temperature ranges instead of only the destination country.
- Testing and documentation: Define the required factory test documents, packing records, cable marking, and inspection procedure.
When a project needs a particular sheath or fiber construction, include it in the RFQ as a required field. A general request such as “ADSS cable, 24 core” is usually not enough for a reliable production quotation.
How to Prepare an ADSS Cable RFQ
A good RFQ allows the manufacturer to identify technical risks early. It also reduces the chance that a low initial price will later be revised because span, fitting, packing, or documentation requirements were missing.
| RFQ field | Example information to provide |
|---|---|
| Project use | Telecom access, inter-office route, utility corridor, campus, or rural backbone |
| Installation method | Self-supporting aerial, pole line, tower line, road crossing, or mixed route |
| Fiber design | Fiber count, single-mode type, spare allocation, and connector or splice plan |
| Span information | Typical span, maximum span, ruling span, height difference, and line angle |
| Environment | Wind, ice, temperature, UV, coastal exposure, pollution, and lightning conditions |
| Accessories | Tension clamps, suspension clamps, grounding parts if required, and attachment hardware |
| Quality documents | Routine tests, inspection records, packing list, and cable marking requirements |
| Delivery | Quantity, drum length, destination, delivery schedule, and packaging constraints |
For projects with mixed route conditions, divide the cable schedule into sections. For example, list normal pole spans, long crossings, terminal sections, and transitions into ducts or buildings separately. This helps the supplier quote the correct cable and fittings for each section.
Installation and Acceptance Checks
Procurement quality does not end when the cable arrives. Before installation, inspect the drum, cable markings, end seals, packing condition, and documentation. Confirm that the supplied fittings match the cable diameter and project schedule. If the cable is delivered with a different construction or marking than the approved data sheet, stop and resolve the discrepancy before pulling the route.
During installation, control the pulling method, minimum bending radius, temporary support, and cable payout. Avoid dragging the cable across sharp surfaces or allowing it to twist around temporary equipment. At each support point, check that the clamp is installed according to the approved arrangement and that the cable is not being forced into a tight angle.
After installation, verify sag, clearances, attachment positions, cable marking, and route continuity. Record the final route condition with photographs and as-built information. If a project requires optical testing, complete OTDR and insertion-loss testing according to the project acceptance plan rather than using an informal pass or fail threshold.
Common ADSS Selection Mistakes
- Choosing only by fiber count: Fiber count does not describe span, loading, sheath, or fitting requirements.
- Using one fitting type everywhere: Tangent, suspension, tension, corner, and terminal points do not have the same mechanical role.
- Ignoring route transitions: Aerial-to-duct and aerial-to-building entries need separate protection and bending controls.
- Quoting without the longest span: The maximum span or special crossing may control the cable and fitting design.
- Mixing cable and hardware suppliers without compatibility review: The fitting grip range and cable diameter must match the approved cable construction.
- Skipping environmental information: Wind, ice, pollution, temperature, and UV exposure can change the mechanical design.
- Using catalogue figures as final engineering approval: Product catalogue guidance supports selection; the project calculation and local requirements remain controlling.
Related OWIRE Resources
For a complete accessory review, read the ADSS fiber optic cable fittings guide. It explains the difference between tension and suspension fittings and how route conditions affect the hardware request.
For a larger cable selection project, use the fiber optic cable procurement planning guide to organize route sections, fiber count, drum planning, testing, and delivery requirements.
When you are ready to confirm an ADSS design, contact the OWIRE project quotation team with the fiber count, span information, route environment, and required delivery market. For technical clarification before ordering, the OWIRE support team can help identify the information needed for a more accurate review.
Frequently Asked Questions
What is the main advantage of ADSS fiber optic cable?
ADSS cable is designed as an all-dielectric self-supporting aerial cable. It can be installed without a separate metallic messenger, subject to the route design, loading conditions, and approved support hardware.
Is a longer span always a reason to choose a heavier cable?
No. Longer spans require a complete mechanical review that considers cable weight, tensile requirements, sag, clearance, wind, ice, temperature, and fitting design. A heavier cable may be appropriate in one route and unnecessary in another.
When should an ADSS route use double suspension fittings?
OWIRE catalogue guidance identifies double suspension arrangements for large height differences and spans above 800 meters, or for line angles above 30 degrees. The final choice must be confirmed against the project calculation, cable design, and structure details.
What should be included in an ADSS cable quotation request?
Include fiber count and type, typical and maximum spans, route elevation, installation and operating temperatures, wind and ice conditions, sheath requirements, cable diameter and weight limits, fittings, testing documents, drum length, quantity, destination, and delivery schedule.
Can ADSS cable and fittings be ordered separately?
They can be purchased separately, but compatibility should be checked before ordering. The fitting grip range, cable diameter, mechanical load, route angle, and installation arrangement must all match the approved cable.
Conclusion
ADSS fiber optic cable span selection is a route-engineering decision, not a single product-name decision. Start with the route profile, separate normal spans from special crossings, identify tension and suspension points, and request the cable and hardware as one coordinated system. With the right project information, a manufacturer can recommend a practical cable construction, accessory set, testing package, and delivery plan for the actual aerial network.
Send the route length, maximum span, fiber count, environment, and destination to the OWIRE quotation team for a project-specific ADSS cable review.
Technical reference: consult the applicable local utility requirements and the relevant international optical-fibre cable recommendations published by the International Telecommunication Union.
