Fiber Optic Splice Closure vs Distribution Box: Which One Do You Need?

Fiber optic splice closures and optical distribution boxes are often discussed together because both appear in access and outside-plant fiber networks. They do not perform the same job. A splice closure protects and organizes fiber splices, cable entries, and slack in a sealed enclosure. A distribution box provides a controlled point for fiber termination, adapter access, patching, splitter management, and subscriber or branch distribution. Some projects need one, some need the other, and larger networks may use both at different points in the route.

The difference matters during procurement. Choosing a distribution box when the route requires a sealed splice enclosure can expose joints to moisture, contamination, and mechanical disturbance. Choosing a large splice closure where technicians need frequent patching or splitter access can make daily operations slow and unnecessarily complex. This guide compares the two products by network role, installation environment, cable entry, splice or termination method, access frequency, capacity planning, and RFQ requirements.

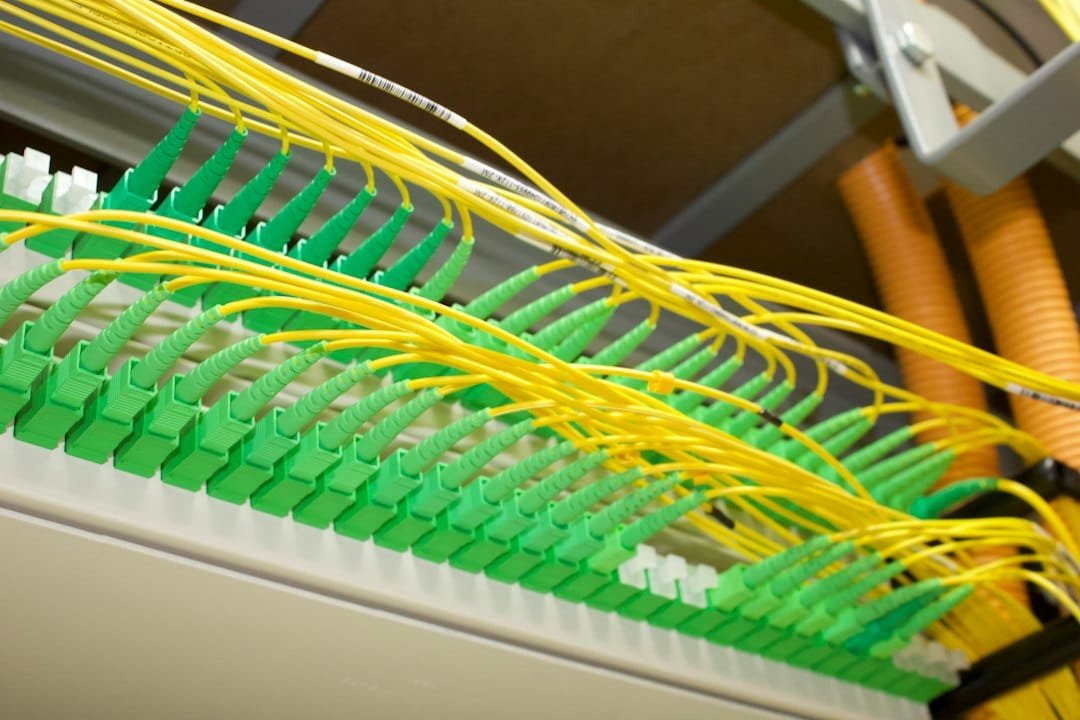

Fiber to the home access network for splice and distribution planning
Fiber access network equipment helps separate protected splice points from serviceable distribution points.

Quick Answer

Choose a fiber optic splice closure when the primary task is to protect and manage permanent or branching fiber splices in an outdoor, underground, duct, pole, or direct-burial route. Choose an optical distribution box when the primary task is to terminate, patch, split, label, and distribute fibers at an access, building, floor, cabinet, or controlled indoor/outdoor point. Use both when a sealed outside-plant joint feeds a service distribution point.

  • Splice closure: cable entry, fiber routing, splice-tray organization, sealing, and environmental protection.
  • Distribution box: adapter access, patching, splitter placement, fiber identification, and branch distribution.
  • Use both: protect a feeder or branch joint in a closure, then present fibers to technicians in an ODB or terminal box.
  • Final selection: confirm cable count, splice count, adapter layout, splitter plan, installation location, sealing method, and maintenance workflow.

What Is a Fiber Optic Splice Closure?

A fiber optic splice closure is an enclosure designed to protect the point where optical fibers are permanently joined or branched. It provides a protected space for cable entries, splice trays, fiber routing, strength-member handling, and service loops. Depending on the product and route, a closure may be installed in a handhole, cabinet, duct, pole, aerial position, or direct-burial environment.

The closure’s job is mainly protective and organizational. It should keep the splice area stable, reduce exposure to water and contamination, control fiber bend paths, and allow a trained technician to reopen the enclosure when repair or expansion is required. The enclosure does not replace correct cable preparation, sealing, splice protection, or route engineering.

For product-specific selection, review the fiber optic splice closure buying guide. It covers the main questions around horizontal and vertical closure selection, installation environment, sealing, fiber organization, and procurement checks.

What Is an Optical Distribution Box?

An optical distribution box, often called an ODB or fiber distribution box, is a controlled point for organizing and distributing optical fibers. It may contain adapter panels, splice areas, splitter modules, pigtails, patch cords, and cable-management elements. It is commonly used near a building entrance, floor, cabinet, access point, or subscriber distribution location where technicians need to identify and connect fibers.

The distribution box’s job is mainly access and distribution. It creates a usable interface between incoming cable, spliced pigtails, splitters, patch cords, and outgoing drop cables. The exact configuration depends on the product: some boxes prioritize termination and patching, some include a small splice area, and some are designed around splitter distribution. The buyer should not assume that every distribution box has the same environmental rating or internal capacity.

Use the optical fiber cable distribution box buying guide to compare adapter layout, splitter function, routing, material, installation environment, and access requirements. Those details should be matched to the network’s actual termination and maintenance workflow.

The Main Difference: Protection vs. Distribution

The simplest way to separate the products is to ask what technicians must do at the location. If the location exists primarily to protect a joint between cables, start with a splice closure. If technicians must frequently connect, disconnect, identify, split, or route fibers, start with a distribution box. If both activities occur, design a coordinated closure-and-box arrangement.

Selection factorFiber optic splice closureOptical distribution box
Primary purposeProtect and organize fiber splices and cable jointsTerminate, patch, split, label, and distribute fibers
Typical locationHandhole, duct, pole, aerial route, cabinet, or buried outside plantBuilding entry, floor, cabinet, access point, wall, rack, or controlled outdoor point
Technician accessInfrequent repair, expansion, or joint inspectionRegular patching, testing, identification, and subscriber or branch connection
Internal prioritySplice trays, fiber routing, slack storage, cable anchoring, and sealingAdapters, splitter space, patching, labeling, splice area, and cable organization
Environmental questionCan the enclosure protect the joint in the proposed route?Can the box protect and present the fibers at its installation point?
Best RFQ starting pointCable entries, splice count, tray type, sealing, route, and future jointsAdapters, splitters, ports, incoming and outgoing cables, mounting, and access frequency

This comparison is a planning framework, not a universal product classification. A manufacturer may offer hybrid enclosures with splice and distribution functions. The correct decision still depends on the construction drawing, environmental requirement, fiber schedule, and maintenance method.

When to Choose a Splice Closure

Choose a splice closure when the network includes a cable joint that must remain protected for years with limited routine access. Typical examples include a feeder cable joint in a handhole, a branch splice along a duct route, an aerial distribution joint, a direct-burial transition, or a repair point where two cable sections are joined.

  • The cable route includes a permanent or branching splice.
  • The joint may be exposed to moisture, soil, condensation, dust, or outdoor temperature changes.
  • The cable entry and strength-member arrangement need a protected enclosure.
  • The location is not intended to be a daily patching point.
  • The project needs organized splice trays and protected slack storage.
  • Future expansion will add cable branches or splice work at the same route section.

A closure is especially important where the splice is difficult to access after construction. The route designer should plan the enclosure position, slack allowance, cable-entry direction, support, drainage or burial method, and maintenance access before the cable is installed. A technically suitable closure can still create field problems if there is no room to reopen it or manage the cable slack.

When to Choose a Distribution Box

Choose a distribution box when the network needs a visible, labeled, and serviceable connection point. Common applications include a building entrance, a floor distribution area, a cabinet, a telecom room, an access point, or a subscriber branch where technicians connect drop cables and manage adapters or splitters.

  • Technicians need regular access to adapters, patch cords, splitters, or ports.
  • The incoming cable must be organized into multiple outgoing distribution fibers.
  • The project needs a visible labeling and port-identification system.
  • The box must coordinate spliced pigtails, patch cords, and subscriber drops.
  • The installation point requires wall, rack, cabinet, pole, or other planned mounting.
  • The project needs a controlled place to test, reconfigure, or expand service connections.

A distribution box is not automatically a substitute for an outside-plant splice closure. If the incoming cable joint will be exposed to harsh moisture or buried conditions, a sealed closure may be needed before the fibers reach the box. The box should be selected for the environment in which it is installed, not for the harsher environment of a different route section.

When You Need Both Products

Many FTTH and access networks use both a splice closure and a distribution box because their functions occur at different points. A feeder cable can enter a sealed closure in an outside-plant route, where fibers are spliced to a branch cable. The branch cable can then reach a building or cabinet, where an ODB presents fibers to splitters, patch cords, or drop cables.

This separation makes the network easier to operate. The closure protects the permanent joint, while the box creates an accessible service interface. It also makes fault isolation clearer: a technician can test the route before the box, inspect the distribution ports, and replace or reroute a patch cord without reopening a buried or aerial splice enclosure.

Network pointLikely primary productReason
Feeder cable joint in a handholeSplice closureProtects the joint and organizes splice trays in an outside-plant route
Branch joint on a pole or in a ductSplice closureProvides cable entry, sealing, splice protection, and future joint access
Building entrance or telecom roomDistribution boxCreates a labeled access and patching interface
Splitter distribution pointDistribution box with compatible splitter spaceOrganizes splitter input, output, adapters, and drop connections
Transition from outside plant to building serviceBoth may be usedSeparates sealed route joints from regular service access

Splice Capacity and Fiber Routing

Capacity should be measured by the actual work inside the enclosure, not only by the number of ports printed in a catalogue. For a splice closure, list the number of incoming cables, fibers to be spliced, splice type, tray count, branch cables, slack length, and future expansion allowance. A closure with enough splice positions may still be unsuitable if cable entries, tray routing, or slack storage do not fit the construction.

For a distribution box, list incoming fibers, adapters, splitter modules, pigtails, patch cords, outgoing drop fibers, and labeling space. Consider the bend path at every port and the way a technician will remove one connection without disturbing adjacent fibers. A box should be large enough for the planned configuration but not so oversized that unused space makes identification and management difficult.

If the distribution point includes PLC splitters, read the PLC fiber optic splitter buying guide together with the box specification. The splitter ratio, package type, connector arrangement, input and output routing, and maintenance method must fit the internal layout. The split ratio alone does not determine whether the box is suitable.

Cable Entry, Sealing, and Environment

Environmental protection is a system decision. Confirm how the cable enters, how the entry is sealed, how unused ports are closed, how the cover is secured, and how the enclosure is mounted or buried. A closure in a wet duct, a pole-mounted closure, and a box in a dry telecom room do not face the same exposure.

For the cable side, confirm diameter range, sheath material, water-blocking construction, armor or non-armored design, and the method used to prepare the cable. The water-blocking fiber optic cable guide explains why the cable’s water-control design should be matched to the route and joint location. A closure cannot compensate for a cable or entry preparation that is not suitable for the environment.

For an outdoor route, confirm UV, rain, condensation, temperature, wind, impact, corrosion, and installation access. For an indoor or building-entry box, confirm mounting, smoke or halogen requirements, door clearance, bend space, and the ability to lock or label the unit. Ask the supplier for the applicable environmental rating and installation instructions instead of relying only on terms such as “waterproof” or “outdoor.”

Splicing, Patching, and Maintenance Workflow

The maintenance workflow is one of the strongest selection signals. A splice closure is normally opened for planned repair, expansion, or a fault investigation. The technician must protect the splice trays, keep fibers within the correct bend path, reseal the cable entries, and document the work before closing the enclosure. The design should minimize the chance that routine service activity disturbs a permanent joint.

A distribution box is intended to make routine service easier. Technicians may patch a port, replace a pigtail, test a splitter output, identify a subscriber drop, or rearrange a branch. The box should therefore support clear labeling, safe access, controlled slack, and a layout that allows one connection to be handled without pulling on another.

If the project uses pigtails or field splicing at the box, include a splice area and routing method in the request. The fiber optic pigtail buying guide covers connector polish, fiber mode, splice-tray routing, insertion loss, return loss, and procurement checks. These details connect the box layout to the actual optical termination plan.

Cable and Accessory Coordination

Do not purchase the enclosure in isolation. A closure or box must match the cable, splice protection, pigtails, adapters, splitters, patch cords, mounting hardware, entry seals, and labeling system. The outside diameter of the cable, number of cable entries, fiber count, strength-member arrangement, and required bend radius should be reviewed together.

For building-access networks, the box may connect to drop cable assemblies or waterproof connectors. Review the FTTH drop cable and self-supporting bow-type cable comparison when the route changes between an outdoor access approach and a protected building pathway. The distribution point should be placed where the cable transition and maintenance method are both practical.

For outdoor sealed connections, the pre-terminated waterproof connector guide can help define the connector, sealing, and outdoor access requirements. A connector may be useful for a drop connection, but it is not a substitute for the splice protection and cable-management function of a closure.

Common Buying Mistakes

  • Using a distribution box as a buried splice enclosure: A box designed for accessible distribution may not provide the sealing, cable entry, or mechanical protection required underground.
  • Using a large closure for routine patching: A sealed splice enclosure can be inconvenient when technicians need frequent port access.
  • Counting ports instead of work positions: Splice trays, adapters, splitters, cable entries, and slack storage all consume usable capacity.
  • Ignoring cable diameter: The entry seal and anchoring method must match the actual cable, not just the fiber count.
  • Forgetting future expansion: Leave a defined allowance for additional cable branches, splitters, ports, or service loops.
  • Placing the box at the wrong transition: The service interface should be accessible without exposing sensitive joints to unnecessary handling.
  • Ordering a “waterproof” product without the installation method: Sealing depends on the enclosure, cable preparation, entry system, mounting, and closure procedure.

RFQ Checklist

Give the supplier enough information to recommend a closure, distribution box, or coordinated combination. The following fields can be copied into an RFQ.

RFQ fieldInformation to provide
Network locationFeeder joint, branch route, handhole, pole, building entrance, floor, cabinet, or telecom room
Primary functionSplicing, branching, sealing, patching, splitting, termination, or mixed use
Incoming cablesCable type, diameter, fiber count, armor, sheath, entry direction, and quantity
Splice scheduleFibers to splice, splice type, trays, branch count, and future expansion
Distribution scheduleAdapters, pigtails, patch cords, splitter ratio, ports, labels, and outgoing drops
EnvironmentIndoor, outdoor, duct, handhole, aerial, direct burial, cabinet, temperature, moisture, and contamination
MountingWall, rack, pole, tray, cabinet, underground chamber, or other support
MaintenanceExpected access frequency, locking, testing, reconfiguration, and documentation needs
Quality documentsProduct drawings, test records, environmental evidence, installation guide, and packing list
DeliveryQuantity, destination market, packaging, labeling, spare units, and required delivery date

Ask the supplier to identify any assumptions in the quotation. If the proposed box includes a splice area, ask how many fibers can be spliced while preserving the required bend path and slack. If the proposed closure feeds a distribution box, ask for the cable transition, entry preparation, and recommended installation sequence.

Installation and Acceptance Checks

Before installation, inspect the enclosure, trays, adapter panels, entry seals, hardware, labels, and mounting accessories. Confirm the product model, capacity, cable diameter range, and environmental application against the approved quotation. Do not start cable preparation until the entry layout and fiber-routing plan are clear.

  • Verify the enclosure model, dimensions, mounting method, and cable-entry range.
  • Confirm splice trays, adapter plates, splitter modules, and pigtails match the order.
  • Check cable identification, fiber count, sheath condition, and end protection.
  • Follow the manufacturer’s stripping, anchoring, sealing, and fiber-routing instructions.
  • Keep bend radius, slack storage, splice protection, and labeling under control.
  • Complete optical testing and record the final port, splice, and cable mapping.

After installation, photograph or document the internal routing before closing the enclosure or box. Record the cable entries, splice-tray positions, adapter numbering, splitter ports, and outgoing fibers. This information reduces future service time and helps a replacement technician avoid disturbing the wrong fiber.

How to Make the Final Decision

Start with the network event that occurs at the location. If two cables are being joined or branched and the joint must be protected, choose a splice closure. If an incoming cable must be presented to adapters, splitters, patch cords, or subscriber drops, choose a distribution box. If the route includes both events, place the products where each function can be maintained safely.

If your answer is mainly…Start with…Then verify…
“We need to protect a permanent cable joint.”Fiber optic splice closureCable entries, splice capacity, sealing, tray routing, and environment
“Technicians need to patch and identify service fibers.”Optical distribution boxAdapters, labels, splitter space, access, mounting, and bend management
“We need a sealed joint and a service interface.”Coordinated closure plus distribution boxTransition cable, testing points, maintenance boundaries, and documentation
“We are not sure what happens at the location.”Route and fiber schedule reviewNetwork drawing, cable schedule, splice plan, and operations workflow

For a broader cable and accessory plan, use the fiber optic cable procurement planning guide. It helps connect route segmentation, fiber count, drum planning, testing, logistics, and RFQ preparation to the enclosure decision.

Frequently Asked Questions

Can a distribution box replace a fiber optic splice closure?

Not automatically. A distribution box may include a splice area, but it must be specifically rated and constructed for the environment and cable-entry method. A buried, duct, or exposed outside-plant joint may require a dedicated sealed splice closure, while the distribution box is used later as an accessible service point.

Can a splice closure be used for patching?

A closure can protect spliced fibers and may support certain branch arrangements, but it is not normally selected for frequent patching. If technicians need regular adapter, splitter, or subscriber-port access, an optical distribution box is usually a better operational interface.

Do FTTH networks need both a closure and a distribution box?

Many do, especially when a sealed outside-plant joint feeds a building, cabinet, or subscriber distribution point. The closure protects the route joint, while the distribution box organizes splitters, adapters, pigtails, patch cords, and drop connections where technicians need access.

What should I specify for a splice closure?

Specify cable type and diameter, fiber count, number of incoming and branch cables, splice count, splice-tray arrangement, slack requirement, installation environment, mounting or burial method, sealing, future expansion, and required documentation. Ask for a construction drawing and installation guide.

What should I specify for an optical distribution box?

Specify incoming and outgoing fibers, adapter type and count, splitter ratio and package, pigtails, patch cords, splice capacity, cable-entry range, mounting method, environment, labeling, access frequency, and future port allowance. Make sure the box layout fits the actual maintenance workflow.

Conclusion

A fiber optic splice closure and an optical distribution box solve different network problems. The closure protects and organizes cable joints and permanent splices. The distribution box creates an accessible point for termination, patching, splitting, labeling, and service distribution. Selecting the right product starts with the network function at the location, not with the product name or a port-count comparison.

For many FTTH and access projects, the strongest design uses both: a sealed closure in the outside-plant route and a distribution box at the building, cabinet, or service interface. Document cable entries, splice and adapter capacity, environment, mounting, maintenance access, and future growth before requesting a quotation.

For a project-specific recommendation, send the route drawing, cable schedule, splice plan, splitter requirement, and destination market to the OWIRE quotation team. The OWIRE support team can help clarify the information needed to compare a closure, a distribution box, or a coordinated solution.

Technical reference: review the applicable local installation requirements and relevant optical-fibre cable recommendations from the International Telecommunication Union.
