ADSS vs OPGW: Which Aerial Fiber Cable Is Right for Your Project?

Choosing the wrong aerial fiber cable for a power line or telecom span is one of the most expensive mistakes a project engineer can make — wrong sag calculations, insulation failures near high-voltage lines, or a cable that simply can’t survive the required span length. Two cable types dominate this space: ADSS (All-Dielectric Self-Supporting) and OPGW (Optical Ground Wire). They look similar on a datasheet but serve very different roles on the pole or tower. This guide breaks down the real differences between ADSS vs OPGW, so you can specify the right cable the first time.

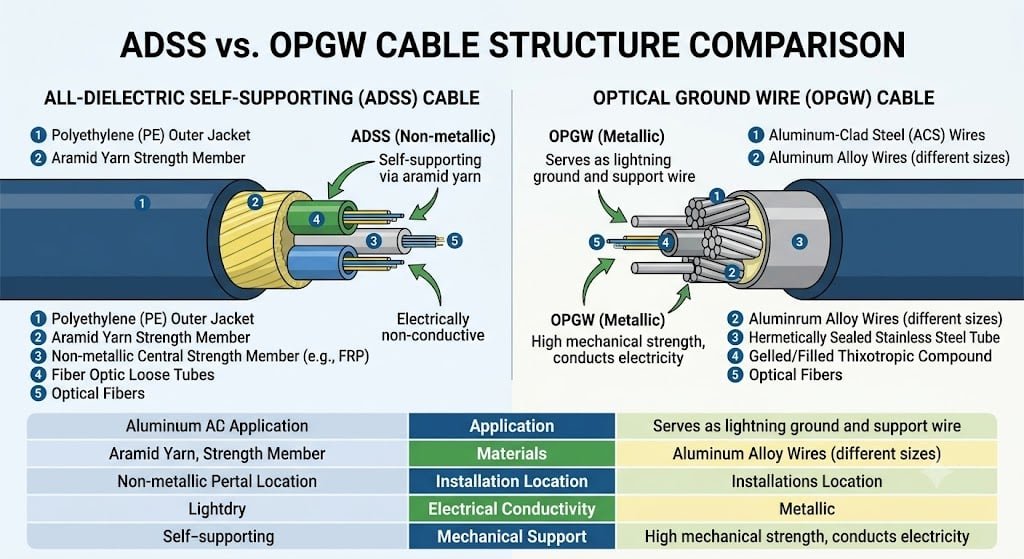

What Are ADSS and OPGW Cable?

ADSS cable is a self-supporting, fully dielectric (non-metallic) aerial fiber optic cable. Because it contains no metallic components, it can be installed directly on utility poles or existing power line towers — including on the same structure as medium and high-voltage lines — without the risk of induced current or lightning conduction. ADSS is typically strung between poles using preformed dead-end and suspension clamps, with no separate messenger wire required.

OPGW cable replaces the traditional grounding/shield wire at the very top of a transmission tower. It combines the function of a lightning shield wire with embedded optical fibers inside a stainless-steel or aluminum-clad tube, surrounded by aluminum or steel wire strands. Because it’s conductive, OPGW is only installed at the shield-wire position on transmission towers — it cannot be strung mid-span like ADSS.

In short: ADSS is chosen when you need a dielectric, standalone fiber cable that can share a pole with power lines. OPGW is chosen when the fiber needs to physically replace or integrate with the tower’s shield wire, typically on new transmission line construction or shield-wire replacement projects.

ADSS vs OPGW: Key Differences

The core distinction comes down to conductivity, installation position, and typical project type.

• ADSS is non-conductive, making it immune to electromagnetic interference and safe near live conductors — this is why it’s the default choice for distribution-level retrofits where a new shield wire isn’t practical.
• OPGW is conductive and mechanically part of the tower’s grounding system, so it must be designed and installed by teams already handling the transmission line’s electrical protection.
• ADSS is generally faster and cheaper to install on existing poles; OPGW usually requires the line to be de-energized during installation since it sits at the top of the tower.
• OPGW is more common on new-build extra-high-voltage (EHV) transmission projects; ADSS dominates rural broadband, FTTH backbone, and medium-voltage distribution retrofits.

If you’re also evaluating fiber types for indoor or FTTH deployment rather than aerial power-line runs, our earlier comparison of single mode vs multimode fiber covers that decision in detail.

Technical Specifications Compared

Sag and tension design is where most first-time buyers go wrong: ADSS spans must be modeled with the specific pole heights, ice/wind loading of the region, and creep behavior of the aramid yarn strength members — this isn’t a “one size fits all” spec, and OWIRE’s engineering team runs this calculation for every ADSS order.

How to Choose the Right Aerial Cable for Your Project

If you’re extending fiber along existing distribution poles (rural broadband, last-mile FTTH backbone, telecom operator middle-mile) — ADSS is almost always the right call. It avoids permitting complications tied to conductive cable near live lines and installs faster. See our FTTH and commercial broadband solutions for how ADSS fits into a full last-mile build.

If you’re building or upgrading a transmission line and need to add fiber communication for grid monitoring, protection relaying, or telecom backhaul — OPGW is typically mandated by the utility’s design standard, since it also serves as the shield wire.

If your project spans both scenarios — for example, a telecom operator leasing dark fiber space on a utility’s transmission corridor and then dropping down to distribution poles for last-mile delivery — you’ll likely need both cable types in the same project. Our outdoor & telecom cabling solutions page covers mixed aerial deployments like this.

A field engineer we work with in Southeast Asia put it simply during a recent project review: they had originally specified OPGW for a rural distribution extension, only to realize mid-project that the poles weren’t designed to carry the extra tension and weight of a steel-cored cable — switching to ADSS solved both the sag and the permitting delay.

Certifications & Testing Standards

Both cable types should be specified against recognized international standards, not just a manufacturer’s internal datasheet:

• IEC 60794-1-1 — the global standard governing fiber optic cable construction, mechanical, and environmental test methods, referenced for both ADSS and OPGW designs.
• IEEE 1222 — the dedicated standard for ADSS cable used on power line structures, covering electrical stress design and installation criteria.
• IEEE 1138 — the standard specifically for OPGW, covering its dual role as shield wire and optical carrier.

At OWIRE, every batch of ADSS and OPGW cable undergoes 100% OTDR testing for optical continuity and Fluke cable certification for mechanical and structural conformance before it leaves the factory — this data is available on request for every shipment, which matters when a utility’s procurement team requires traceable QA records.

Common Mistakes to Avoid

• Using ADSS span design tables from a different climate zone. Ice loading and wind span calculations are region-specific; reusing a datasheet from a different country’s standard often under-specifies the aramid yarn strength member.
• Specifying OPGW without confirming the tower’s existing shield wire attachment hardware. Retrofitting OPGW onto an older tower sometimes requires new hardware entirely.
• Ignoring fiber count headroom. Both cable types are expensive to re-string; under-specifying fiber count for future capacity is a common and costly oversight.
• Skipping third-party test reports. Always request OTDR and mechanical test certificates per batch, not just a general product datasheet.

Why Choose OWIRE as Your Aerial Fiber Cable Supplier

OWIRE has manufactured fiber and network cable since 2009, with dedicated production lines for outdoor and aerial cable types, including ADSS and OPGW. Every reel is 100% OTDR and Fluke tested before shipment, and our team provides sag-tension calculation support for ADSS projects rather than leaving span design entirely to the buyer. We hold multiple international certifications covering environmental and safety compliance, and we support flexible MOQ for both distributors stocking standard reels and utilities ordering project-specific custom builds. You can review our full manufacturing process to see how batch testing is handled on the factory floor.

Our broader fiber optic cable range covers indoor, outdoor, and specialty aerial constructions if your project also needs armored or FTTH-specific cable alongside ADSS/OPGW.

FAQ

Can ADSS cable be installed on the same pole as high-voltage power lines?

Yes — because ADSS is fully dielectric, it can be installed on poles carrying medium- and high-voltage lines, provided the span and clearance are designed to the relevant IEEE 1222 electrical stress criteria.

Is OPGW more expensive than ADSS?

Generally yes, per kilometer, because OPGW contains steel and/or aluminum strands and typically requires a line outage for installation, adding to total project cost.

Can OPGW be used on distribution poles instead of transmission towers?

It’s technically possible but uncommon — OPGW is designed to replace a shield wire, a function distribution poles usually don’t have, so ADSS is normally the better fit there.

What fiber counts are available for ADSS and OPGW cable?

OWIRE typically supplies ADSS in 12–288 fiber counts and OPGW in 12–144 fiber counts, with custom counts available for larger projects.

Do you provide sag-tension calculations for ADSS projects?

Yes, our engineering team can provide span and sag-tension design support based on your pole height, span length, and regional ice/wind loading data.

What is the minimum order quantity for ADSS or OPGW cable?

MOQ is flexible and depends on fiber count and construction — contact our team with your project specification for an exact quote and lead time.

Conclusion

ADSS and OPGW solve two different problems on the same type of infrastructure. ADSS gives you a dielectric, faster-to-install cable for distribution poles and last-mile fiber runs, while OPGW integrates fiber directly into a transmission tower’s shield wire system. Getting this choice right — and backing it with proper span design and batch-tested cable — prevents costly re-stringing down the line.
