Quick answer: Choose an indoor fiber distribution cable by matching its construction to the building route, required fiber count, termination method, fire-code classification, and installation limits. OWIRE’s catalogue identifies its GJPFJH/V distribution family as a multi-fiber, 900 μm flame-retardant tight-buffered cable with aramid strength members and PVC or LSZH sheath options; it lists a 2–144-fiber family and says higher counts can be customized. Those catalogue statements do not by themselves prove a specific local fire rating, third-party listing, or suitability for every pathway. Confirm the exact model, evidence, and project requirements before ordering.
Table of Contents
- What an indoor distribution cable is
- Start with the route and pathway
- Distribution vs. breakout vs. simplex cable
- Choose fiber type and count
- What 900 μm tight-buffered fibers change
- Specify the sheath and fire classification
- Check pulling, bending, and mechanical limits
- Three building-network examples
- Installation and acceptance checks
- Indoor fiber cable RFQ checklist
- Common specification mistakes
- Frequently asked questions
1. What is an indoor fiber distribution cable?
An indoor fiber distribution cable is a multi-fiber cable used to carry optical circuits through a building pathway and distribute them toward telecommunications rooms, cabinets, work areas, or equipment. A typical tight-buffered design places several individually buffered fibers under one common outer sheath. The cable is purchased as a bulk cable assembly, then cut, routed, and terminated or spliced as part of the project. It is different from a finished patch cord, which already has connectors fitted to one or both ends.
The name “distribution cable” describes a family of constructions, not one universal specification. Manufacturers may vary the number and arrangement of fibers, buffer diameter, strength members, central elements, wrapping, sheath material, outside diameter, fire classification, and available ratings. Even products that look similar in a catalogue can have different pulling limits, bend guidance, color coding, and approvals. A product-family name is a starting point for comparison; the current model-specific datasheet is the document that should govern the submittal.
OWIRE’s fiber-optic catalogue lists the GJPFJH/V-(2–144)C distribution optical fiber cable family. It describes multiple 900 μm flame-retardant tight-buffered fibers, aramid-yarn strength members, and a PVC or LSZH outer sheath. The catalogue calls out indoor riser- and plenum-level cable distribution as applications, lists several example counts including 4, 6, 8, 12, and 24 fibers, and notes that higher core counts can be customized. Ask OWIRE for the current datasheet and project-specific fire-rating evidence before treating an application note as a code approval.
2. Start with the route and pathway, not the product code
Before comparing an indoor fiber distribution cable price, draw the route from the source room to each destination. Mark floor transitions, riser shafts, ceiling voids, return-air spaces, cable trays, conduits, cabinets, and the point where the cable enters each enclosure. Note whether the cable will be exposed to handling, vibration, sharp edges, moisture, cleaning chemicals, or other building-specific conditions. A route schedule helps the designer separate physical suitability from optical performance.
| Pathway or location | Questions to resolve | Do not assume |
|---|---|---|
| Riser shaft between floors | Which fire classification is required by the adopted code? How is the cable supported and protected? | That a catalogue phrase containing “riser” proves a local listing |
| Plenum or return-air space | Does the cable need a specific plenum classification and documented listing? | That PVC, LSZH, or “flame retardant” automatically means plenum-rated |
| Tray or ceiling pathway | What are the fill, support, access, bend, and separation requirements? | That any jacket is suitable for the ceiling space |

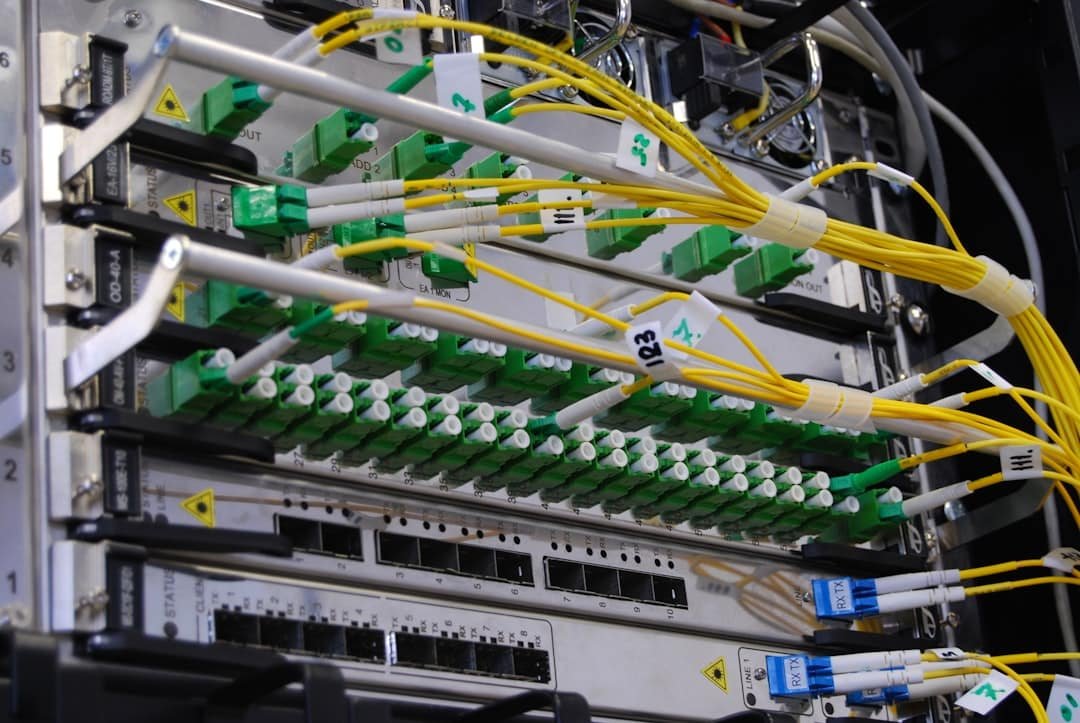

| Telecommunications room or cabinet | Where will the cable be anchored, stored, dressed, and terminated? | That the cable will fit the gland, tray, or enclosure without checking its OD |
| Indoor-to-outdoor transition | Where does the indoor-rated section end, and which cable continues outside? | That an indoor distribution cable can continue through an exterior route |
One route may pass through multiple building zones with different requirements. If so, do not select one cable simply because it suits the longest section. The design may require a transition, splice point, raceway, or different cable construction for a segment. Have the project engineer or authority having jurisdiction confirm the governing code and installation method. Cable marketing language cannot replace the permit documents, local code, or listing documentation.
Drawings should also show where the cable will be accessed. A high-count cable routed to a floor closet can reduce repeated long-distance pulls, but it still needs an organized way to assign and protect individual fibers at the distribution frame. Where a project needs pre-terminated assemblies rather than bulk cable, compare the connectorized assembly’s route, pulling grip, connector protection, and length tolerance before procurement. See the separate fiber-optic pigtail guide for the role of short terminated leads at the equipment side.
3. Distribution vs. breakout vs. simplex cable
The most useful construction comparison is not “which cable is better?” but “which end-of-route workflow does the project need?” Distribution cable commonly places multiple buffered fibers under a shared sheath. Breakout cable commonly groups individually jacketed subunits under an outer jacket so that each subunit can be separated near the destination. Simplex and duplex cables are smaller one- and two-fiber options for short equipment links or jumper-style use. Actual constructions vary by manufacturer, so use the product drawings and bill of materials rather than relying on family names alone.
| Construction | Typical architectural advantage | Trade-off to evaluate | Questions for the RFQ |
|---|---|---|---|
| Distribution, shared outer sheath | Consolidates many fibers into one relatively organized pathway and supports high-count backbone runs | Individual fibers may need protection and fan-out hardware at the point of termination; exact preparation method is product-specific | How are fibers grouped and identified? What termination and breakout components are required? |
| Breakout, individually jacketed subunits | Can simplify separation, handling, and direct termination of individual subunits at the endpoint | Often larger or heavier than a comparable common-sheath design; confirm pathway capacity and actual connectorization compatibility | How many fibers per subunit? What is each subunit OD? Is it intended for direct termination? |
| Simplex or duplex tight-buffered cable | Suited to short, low-count interconnects where one or two fibers are needed | Multiple separate pulls can add labor and pathway congestion when many circuits are needed | Could a multi-fiber trunk simplify routing and centralize termination instead? |
| Pre-terminated trunk or assembly | Moves connectorization and testing toward the factory, potentially reducing on-site termination work | Requires precise route lengths, connector protection, pulling method, and compatible panels | Are connectors protected during pulling? What polarity, connector type, and test report are supplied? |
These are common design patterns, not guarantees of a particular product. The Fiber Optic Association’s cable reference describes tight-buffered simplex, zipcord, distribution, and breakout families and explains that fiber cables are selected according to construction and application. The FOA reference likewise distinguishes a multi-fiber distribution construction from breakout constructions with individually jacketed units. Those examples illustrate why the cross-section and datasheet matter; they do not establish the ratings of another supplier’s cable.
In short: settle route and code first, endpoint/termination method second, then fiber type/count and cable architecture. For high-density pre-terminated trunks, see the separate MPO/MTP guide.
4. Choose the fiber type and count for the link plan
Fiber count should come from a circuit schedule, not a guess based on what fits in the pathway. Count active transmit/receive fibers, protection or spare circuits, planned future links, and fibers reserved for maintenance or route diversity. A duplex connection commonly uses two fibers, but a network may use different transmit/receive arrangements, transceiver types, or connector architectures. Have the network designer state the actual strand count per link and how spares are to be assigned.
For mode and fiber category, confirm both ends of the link and the optics. Single-mode and multimode fibers are not interchangeable simply because a connector fits the adapter. Review the transceiver wavelength, fiber category, channel distance, connector type, patch-panel design, and installed test criteria as one system. If the project is still deciding between modes, use the existing single-mode vs. multimode guide as a starting point, then confirm the choice against the actual transceiver and distance plan.
Ask how fibers and subunits are identified. Color coding is useful, but the project must define which code and sequence apply, whether markings repeat along the cable, how groups are distinguished, and how the field team records assigned strands. Do not assume one color convention across products or regions. Request the manufacturer’s legend and compare it with the project’s splice and patch schedule before approving a sample or production lot.
| Planning input | How it affects the order |
|---|---|
| Active link count | Defines the minimum number of fibers after confirming whether links use duplex, parallel, or another arrangement |
| Spare policy | Adds reserve fibers for future capacity, repairs, or planned service redundancy |
| Fiber mode and category | Must match optics, channel length, patching components, and project standard |
| Fiber grouping | Affects identification, splicing, fan-out, enclosure capacity, and field documentation |
| Route and growth | May favor a larger trunk now, a second cable later, or modular distribution points |
Extra strands occupy pathway and enclosure space, while too few may force a disruptive replacement pull. Set the spare policy in writing and compare total installed cost, not just cable price.
5. What 900 μm tight-buffered fibers change
A tight-buffered fiber has a buffer layer around the coated optical fiber. Many indoor cable families use 900 μm buffered fibers, but the exact construction should be confirmed in the datasheet. A common practical benefit is simpler preparation and termination compared with a construction that requires additional loose-tube preparation. The Fiber Optic Association notes that tight-buffered premises cables are commonly chosen when flexibility and ease of handling or termination matter. This is a general observation, not a promise that every cable can be prepared or terminated in the same way.
“Tight-buffered” does not mean “bare fiber with no handling precautions.” The cable still has manufacturer-defined stripping tools, lengths, bend limits, cleaning procedures, connector components, and storage needs. A termination kit designed for one buffer size or cable family may not suit another. Confirm whether the chosen distribution cable is to be fusion-spliced into pigtails, connectorized in the field, or landed through another approved method; ask for the compatible accessories and preparation instructions.
For a distribution construction, also distinguish the 900 μm optical fiber buffer from any larger jacketed subunit. Some breakout designs enclose each buffered fiber in an additional cordage jacket for more mechanical protection and direct termination; a common-sheath distribution cable may not have that same independent protection around every strand. This difference affects the fan-out method, connector strain relief, panel layout, and the way technicians handle fibers near the end of the cable.
6. Specify the sheath and fire classification explicitly
PVC and LSZH are sheath-material descriptions; they are not universal substitutes for a fire classification or local code approval. Requirements depend on the country, building type, pathway, adopted code edition, and project authority. A purchase order that says only “indoor cable,” “flame retardant,” or “LSZH” leaves important questions open. Name the required classification and standard or approval scheme exactly as it appears in the project specification, and request the certificate, listing, declaration, or test record that applies to the quoted model.
For example, products sold in North America may be described with classifications such as OFNR or OFNP, while other markets use different schemes, including regional low-smoke/fire classes. Do not translate one scheme into another without a documented basis. A cable advertised for “plenum-level application” in a general catalogue is not automatically a product listed for a specific plenum requirement. The model’s marking and accepted evidence must match the destination market and the route.
The FOA premises-network reference explains that these categories describe different applications. OWIRE’s catalogue lists PVC and LSZH sheath choices for the GJPFJH/V family and describes indoor riser/plenum applications, but the catalogue excerpt does not identify an OFNR/OFNP listing for a particular GJPFJH/V order. Request written confirmation of the exact required rating before specifying or importing the cable.
For an LSZH requirement, specify the project’s smoke, halogen, flame, and test-method criteria. These are not interchangeable attributes; request evidence for the exact cable construction and model being quoted.
If a route crosses from indoors to outdoors, indoor-only distribution cable may not be appropriate for the exterior segment. Weather exposure, water, UV, temperature, rodent risk, and whether the cable is in duct or directly buried require a construction designed and documented for that use. The outdoor loose-tube cable guide discusses a separate family for outside-plant routes; do not use that comparison to bypass the project’s own transition design.
7. Check pulling, bending, and mechanical limits
Do not estimate installation safety from cable appearance or fiber count. Request model-specific values for outside diameter, mass, installation temperature, operating temperature, minimum bend radius, maximum installation load, long-term tensile limit, and crush resistance where relevant. Check whether the bend-radius value applies under load or after installation. Confirm the measurement units and test conditions; numbers from another model or a competitor’s datasheet must not be copied into the installation plan.
Pathway design is as important as the cable. For long pulls, document the number and radius of bends, intermediate access points, pulling direction, pulling grip, lubricant if permitted, and the proposed method for monitoring tension. Check tray support spacing, separation from other services, and the space needed to dress the cable into racks and splice enclosures. A high-count cable can be compact, but an assumed outside diameter may cause a conduit-fill or gland mismatch.
8. Three building-network examples
The examples below illustrate how to translate project needs into questions for a supplier. They are planning scenarios, not installed OWIRE case studies or performance claims.
Example A: a multi-floor office backbone
A project links the main equipment room to several floor telecommunications rooms. The designer prepares a strand schedule per floor, adds documented spare capacity, and determines whether all floor links are routed through a shared riser. The bid package names the required fiber mode/category, count, color-identification scheme, riser classification, and termination method. A distribution cable may be worth evaluating where one high-count run can be organized centrally, but the route designer must confirm the cable’s listing and the breakout plan at each closet. Cable count alone does not decide the architecture.
Example B: a cabinet that needs direct connectorization
A compact equipment room has a short route from a local cabinet to switches and optical devices. The team may compare a distribution cable with fan-out components against a breakout cable whose individual subunits are suited to the selected connectorization workflow. The comparison includes total installed cost—not only cable price—plus connector kits, termination labor, strain relief, enclosure space, and test time. If the project instead needs a factory-terminated trunk, the team should specify connector type, polarity, length tolerance, pulling eye or protective method, and factory test documentation before requesting a quote.
For either scenario, compare route, fiber type/count, required rating, termination, accessories, and evidence on the same schedule before releasing the order.
9. Installation and acceptance checks
Receiving inspection should verify the product label, reel or package identification, model code, fiber count, fiber type, sheath, length, and any project-required classification. Match these details to the approved submittal before the cable is pulled. Photograph labels and retain traceability records so the installation team can link each run to its reel and test results.
During installation, use the cable maker’s preparation and pulling instructions. Avoid exceeding specified load or bend limits; protect the end from dust, impact, moisture, and pulling damage. Identify each end as it is installed and record the route, fiber groups, spare strands, and splice or connector assignments. Keep dust caps in place until connection, inspect and clean connector end faces according to the approved procedure, and do not assume that a visually neat cable-management job proves optical performance.
Acceptance testing should be named in the project specification. Depending on the link and contract, this may include continuity/polarity verification, insertion-loss testing, and an OTDR trace or other documentation. Define the test wavelength(s), reference method, launch/receive leads if applicable, pass limits, direction, connector inspection steps, and report format before the work starts. The appropriate test plan depends on the link design; a supplier’s factory report and an installed-link acceptance test serve different purposes.
Keep the final records in a usable format: route identifiers, cable/reel IDs, fiber assignments, end labels, splice diagrams, connector types, test equipment identification, test results, and any deviations. These records help the owner trace future service work and identify a strand without disturbing adjacent circuits. If the job includes finished pigtails or patch cords, make connector polish and adapter compatibility explicit; see the pigtail and patching guide for those component-level checks.
10. Indoor fiber distribution cable RFQ checklist
A complete request for quotation lets suppliers quote the same technical basis and flag gaps before production. Include a route drawing or cable schedule when available, and answer the following items rather than sending only a product name.
- Application and route: building type, endpoints, riser/plenum/tray/conduit sections, indoor-to-outdoor transitions, and exposure conditions.
- Fiber: single-mode or multimode category, number of fibers, required spare policy, identification sequence, and optical performance requirements.
- Construction: distribution or breakout design, buffer/subunit details, strength-member materials, sheath material, color, nominal OD, and tolerances.
- Compliance: destination market, adopted code or project specification, required fire classification, standard edition, and documents needed for approval.
- Installation limits: temperature range, bend conditions, installation load, crush requirements, pathway constraints, and reel/pull length.
- Termination: splice or connector method, direct termination or fan-out requirements, connector/panel interfaces, accessories, and whether the assembly is pre-terminated.
- Quantity and logistics: route lengths, number of reels, cut-length tolerance, reel dimensions, labels, packing, delivery destination, and required delivery window.
- Quality records: model-specific datasheet, sample/cross-section drawing, test reports, traceability, inspection records, and any project-required factory or installed-link test reports.
Require written disclosure of substitutions or unavailable ratings and a line-by-line response. If the offer changes after approval, recheck the revised datasheet before release.
For OWIRE’s fiber-optic cable range, send the route, destination market, fiber mode/count, required classification, estimated quantity, termination method, and target delivery window. The sales team can then confirm which current model and documents match the requirement. Do not rely on a generic product-family page for a project approval or tender submission.
11. Common specification mistakes to avoid
- Ordering by code alone: a GJPFJH or similar family code does not state every construction detail, rating, tolerance, or country approval. Attach the current datasheet and revision to the purchase documents.
- Confusing material with approval: PVC and LSZH describe sheath options; specify and verify the fire classification required for the route and destination.
- Assuming all 900 μm cable is directly terminable: buffer size alone does not settle fan-out, connector, strain-relief, tooling, or installation requirements.
- Choosing fiber count without a schedule: count links, strand usage, spare policy, groups, and future paths before choosing a trunk size.
- Ignoring enclosure and pathway dimensions: check outside diameter, bend radius, reel length, cable support, panel entry, and termination space against the actual route.
- Using an indoor cable outdoors: an indoor application statement does not establish UV, water, temperature, or direct-burial suitability. Specify a tested construction for every route segment.
- Accepting a generic certificate: verify that each document identifies the cable family, model, construction, standard, and rating being purchased.
- Leaving tests until handover: define acceptance methods and report contents in the contract so all parties know what constitutes a complete link.
Frequently asked questions
What is the difference between distribution and breakout fiber cable?
Distribution usually groups buffered fibers under one sheath; breakout cable commonly adds individual jackets around subunits. Compare the exact cross-section and termination instructions: the former can simplify a consolidated run, while the latter can suit individually protected endpoint units.
Is GJPFJH cable suitable for a building riser?
The OWIRE catalogue describes GJPFJH/V for indoor riser/plenum-level distribution, but does not by itself establish a local code classification or listing. Confirm model marking and approval evidence for the destination market.
Does an LSZH sheath mean the cable is plenum-rated?
No. LSZH describes sheath properties; plenum classification is a separate code or approval requirement. Verify the exact model against the project specification.
What fiber counts are available for OWIRE GJPFJH/V cable?
The catalogue identifies a 2–144C family, lists 4, 6, 8, 12, and 24-fiber examples, and notes that higher counts can be customized. Confirm current availability, exact configuration, OD, and datasheet for your order.
Can indoor distribution cable be installed outdoors or underground?
Do not assume so. Verify exposure, water, UV, temperature, and installation-method evidence; direct burial has distinct requirements. Specify the transition and the cable for each route segment.
Should I choose single-mode or multimode fiber?
Base the choice on transceivers, distance, existing plant, and the project standard. Confirm category and wavelengths at both ends; ask the network designer to settle the mode before requesting a firm quote.
What information does a supplier need to quote indoor fiber distribution cable?
Send the route/market, fiber category and count, required classification, construction, lengths and quantity, termination, accessories, delivery point, and required documents. A route drawing helps catch conflicts early.
Does tight-buffered cable always eliminate fan-out components?
No. Some specific tight-buffered designs are intended for direct termination, while a shared-sheath distribution construction may still require protection or fan-out components at the transition. Check the exact product’s termination instructions, accessory compatibility, and warranty conditions rather than making a decision from the word “tight-buffered.”
What should be tested after installation?
Follow the project acceptance plan, which may specify strand identification/polarity, connector inspection, insertion-loss tests, or OTDR records. Define wavelengths, reference method, limits, and report format in advance; factory records do not test the completed link.
Technical references
- The Fiber Optic Association: Fiber Optic Cables — overview of common tight-buffered cable families and construction.
- The FOA Reference: Fiber Optic Cable Types — an overview of tight-buffered and outside-plant constructions.
- The FOA Reference: Fiber Optic Cables — cable types, including distribution and breakout designs.
- The FOA Reference: Fiber Optic Termination — termination and fiber-protection considerations.
