| Ref. Standard | ANSI/TIA 568.2-D, ISO/IEC 11801, YD-T1019, UL444 |
|---|
| Typical Structure Parameters | ||||||
|---|---|---|---|---|---|---|
| Conductor Material | Conductor Diameter | Insulating Material | Insulator Diameter | Sheath Material | Outside Dia. | Color |
| Oxygen-Free Copper | 23AWG | Foamed-PE | 1.35±0.1 | PVC or LSZH | 7.60 mm | Optional |
| Mechanical and Electrical Performance | |
|---|---|
| Conductor Dc Resistance | 73.2 Ω/km |
| Dielectric Strength Between Conductors | 1.5KV ac for a minimum of 2s, without breakdown |
| Dc Resistance Unbalance Inside The Pairs | ≤4% |
| Mutual Capacitance | ≤5.6nF/100m |
| Application Scenario | Description & Compliance |
|---|---|

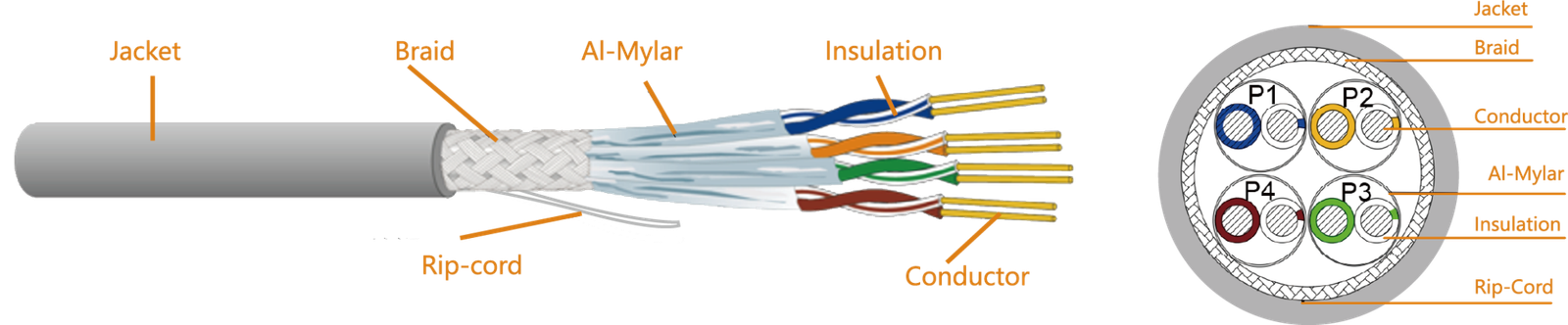

| Severe EMI & Crosstalk Environments | Specifically engineered for mission-critical industrial spaces, heavy machinery zones, and dense server racks facing extreme electromagnetic interference. The advanced dual-layer shielding (Individual pair Al-Mylar foil + Total tinned copper braid) provides unparalleled alien crosstalk (ANEXT) suppression. |
| Next-Gen 10Gbps Data Centers | An ideal infrastructure choice for ultra-high-speed corporate data centers, storage area networks (SAN), and vertical backbone routing requiring continuous, error-free high-bandwidth pipelines. |
| Horizontal Workspace Channels | Optimized for indoor horizontal work area wiring subsystems, guaranteeing maximum performance across full channel lengths up to 90 meters for standard floor network distributions. |
| Ultra-Wide 500MHz Bandwidth Capability | Delivers a massive 500MHz bandwidth with a stable 10Gbps typical application rate, seamlessly handling high-definition video streaming, medical imaging, and big data cloud computing networks. |
| High-Specification Structural Design | Features high-quality 23AWG Oxygen-Free Copper (OFC) cores wrapped in specialized Foamed-PE insulation, yielding a highly stable mutual capacitance ($\le 5.6\text{nF}/100\text{m}$) and exceptionally low DC resistance ($\le 73.2\ \Omega/\text{km}$). |
| Eco-Safety & Flame Retardant Venues | Equipped with customizable PVC or LSZH (Low Smoke Zero Halogen) jacketing, fulfilling modern environmental mandates and strict flame-retardant requirements for enclosed public platforms. |
| Industrial Standard Benchmarks | Fully complies with key global network installation standard protocols, including ANSI/TIA 568.2-D, ISO/IEC 11801, YD-T1019, and UL444 standard compliance criteria. |
| Instructions | |||
|---|---|---|---|
| Operating Temperature | -10~60°C | Construction Temperature | 0~40°C |
| Recommended Bending Radius for Laying | ≥8 * OD | Recommended to Lay Tension | ≤110N (Short-term) ≤20N (Long-term) |
| Packing | Optional, According to Customer Requirements to Discuss. |
|---|
No documents available for this product.
Cat5e supports up to 1Gbps, Cat6 supports 10Gbps over shorter distances, Cat6A supports 10Gbps up to 100 meters, while Cat8 supports up to 40Gbps for high-speed data center applications.
S/FTP cable uses an overall braided shield and individual foil shielding for each pair, providing excellent protection against electromagnetic interference (EMI) and crosstalk.
Yes. Our LAN cables are designed to support PoE, PoE+, and PoE++ systems, delivering both power and data transmission through a single cable.
Most Ethernet cables support transmission distances up to 100 meters under international cabling standards.
Yes. Certification availability depends on the specific product model and destination market requirements.
Yes. We offer OEM and ODM services including cable printing, customized packaging, labels and private branding.
Our engineering team can recommend the most suitable Ethernet cable based on bandwidth requirements, installation environment and project budget.
