| Ref. Standard | ANSI/TIA 568.2-D, ISO/IEC 11801, YD-T1019, UL444 |
|---|
| Typical Structure Parameters | ||||||
|---|---|---|---|---|---|---|
| Conductor Material | Conductor Diameter | Insulating Material | Insulator Diameter | Sheath Material | Outside Dia. | Color |
| Oxygen-Free Copper | 23AWG | HDPE | 1.15±0.08 | PVC or LSZH | 7.80 mm | Optional |
| Mechanical and Electrical Performance | |
|---|---|
| Conductor Dc Resistance | 73.2 Ω/km |
| Dielectric Strength Between Conductors | 1.5KV ac for a minimum of 2s, without breakdown |
| Dc Resistance Unbalance Inside The Pairs | ≤4% |
| Mutual Capacitance | ≤5.6nF/100m |
| Application Scenario | Description & Compliance |
|---|---|

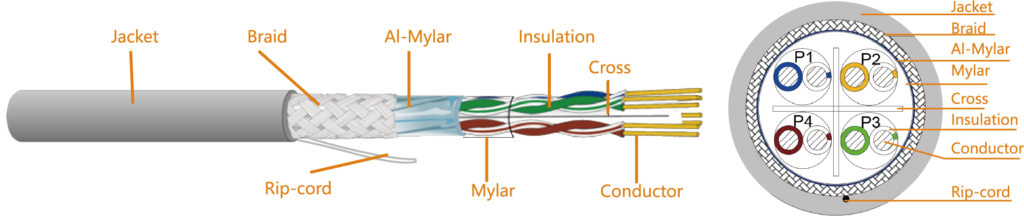

| Extreme EMI & Heavy Industrial Zones | Purpose-built for heavy industrial factories, dense server arrays, and machinery rooms facing severe electromagnetic interference. The combination of an integrated Braid and Al-Mylar foil delivers top-tier total shielding protection. |
| Enterprise 10Gbps Core Networks | Ideally deployed in high-speed enterprise data storage systems, multi-gigabit computing networks, and vertical backbone lines demanding error-free massive data pipelines. |
| Horizontal Workspace Channels | Optimized for top-performance horizontal distribution networks up to standard 90-meter channels, safeguarding critical high-definition data signals from external crosstalk. |
| Ultra-Wide 500MHz Bandwidth | Maintains an exceptional 500MHz transmission bandwidth, driving typical data rates smoothly up to a blistering 10Gbps for modern hyper-scale network platforms. |
| Crosstalk-Free Internal Framework | Employs an internal central Cross separator alongside thick 23AWG pure Oxygen-Free Copper conductors. Lowers loop DC resistance to $\le 73.2\ \Omega/\text{km}$ while drastically suppressing adjacent pair noise. |
| Eco-Safety & Public Venues | Encased in an optional premium LSZH or standard PVC sheath jacket, complying with toxic smoke control and fire retardant standards in enclosed architectural zones. |
| Industrial Standard Benchmarks | Exceeds global data infrastructure standards, fully compliant with ANSI/TIA 568.2-D, ISO/IEC 11801, YD-T1019, and UL444 standard certification rules. |
| Instructions | |||
|---|---|---|---|
| Operating Temperature | -10~60°C | Construction Temperature | 0~40°C |
| Recommended Bending Radius for Laying | ≥8 * OD | Recommended to Lay Tension | ≤110N (Short-term) ≤20N (Long-term) |
| Packing | Optional, According to Customer Requirements to Discuss. |
|---|
No documents available for this product.
Cat5e supports up to 1Gbps, Cat6 supports 10Gbps over shorter distances, Cat6A supports 10Gbps up to 100 meters, while Cat8 supports up to 40Gbps for high-speed data center applications.
S/FTP cable uses an overall braided shield and individual foil shielding for each pair, providing excellent protection against electromagnetic interference (EMI) and crosstalk.
Yes. Our LAN cables are designed to support PoE, PoE+, and PoE++ systems, delivering both power and data transmission through a single cable.
Most Ethernet cables support transmission distances up to 100 meters under international cabling standards.
Yes. Certification availability depends on the specific product model and destination market requirements.
Yes. We offer OEM and ODM services including cable printing, customized packaging, labels and private branding.
Our engineering team can recommend the most suitable Ethernet cable based on bandwidth requirements, installation environment and project budget.
